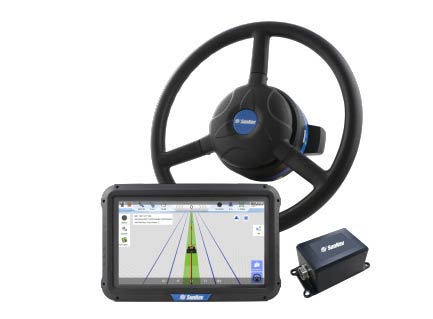

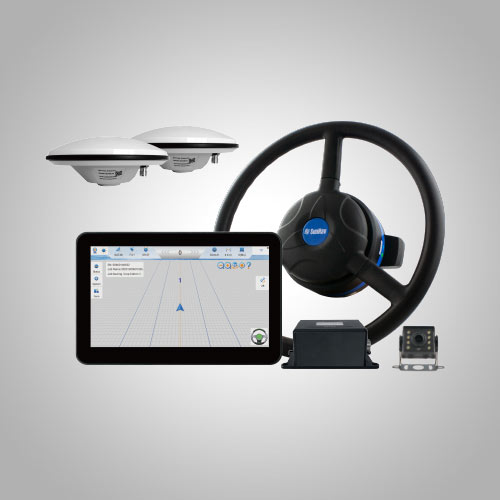

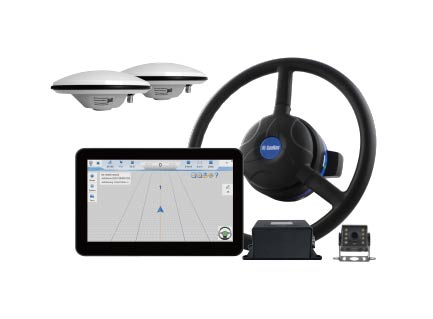

AG300 GNSS Auto-Steering System


SunNav Auto Steering system AG300 can give you high performance autosteering on non steer ready vehicles, including tractors sprayers  swathers and combines. It can provide an accuracy up to 2.5cm and can be widely used in planing spraying harvest.

SunNav GPS auto pilot system AG300 can give you high performance auto pilot on non steer ready vehicles, including tractors sprayers, swathers and combines.

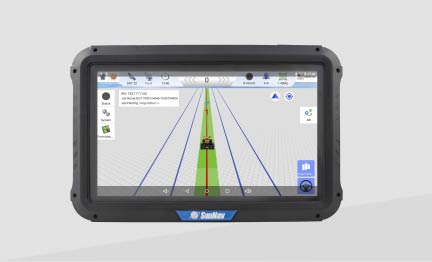

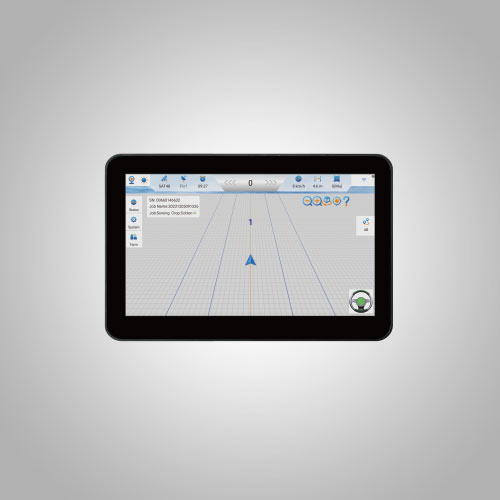

T101 Console
The SunNav T101 display is a portable,robust Android tablet. T101 is provided with a built-in high-precision GNSS board which offers centimeter level accuracy.T101 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.

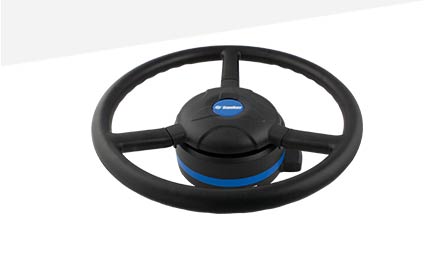

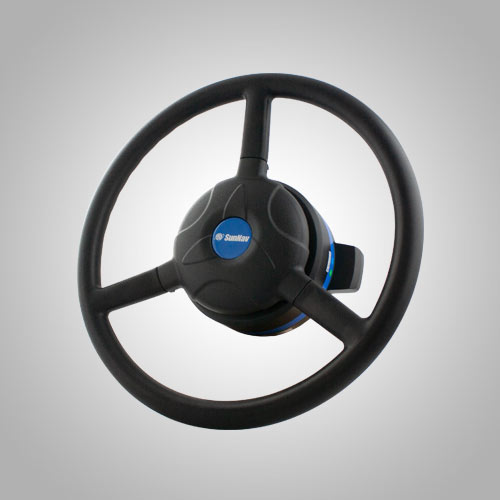

EMS4 motor wheel
The EMS4 is an electric motor steering wheel. It is designed for easy-to-install operation. With high-torque, direct-drive electric motor, EMS4 can give an accuracy 2.5cm RTK.

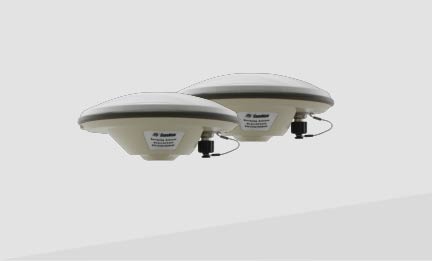

GNSS Antenna
Double grading antenna can give high precision and heading.

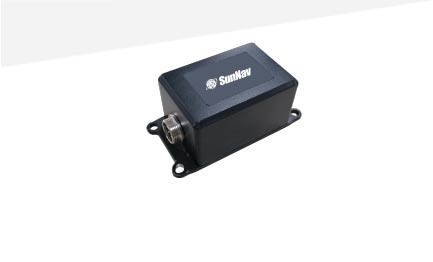

Attitude sensor
Easy to install, it can collect angle data in real time
  • Features
  • Specifications
  • Aplication

■ Easy and fast installation

■ Very simple calibration


Specification


■ Installation in 30 mins, Calibration in 15 mins, Quick learn in 5 mins
■ Don't have to change hydyraulic system
■ Can be switched in different vehicles
■ 3m on the line
■ Operation accuracy
■ Cloud data storage
■ AB Line files can be shared in different vehicles
■ Double antenna receives signal to get high accuracy

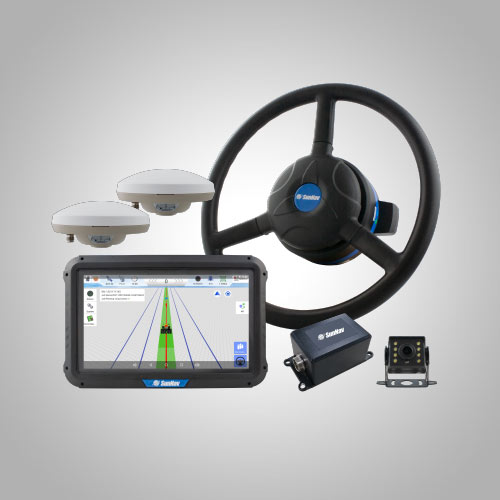

PRODUCT TYPE



GNSS Auto Steering System AG300



STANDARD CONFIGURE• GNSS Base Station
Channels:352 Channels
GPS:L1 C/A code,L1/L2 p code, L5
BEIDOU:B1/B2/B3
GLONASS:L1, L2
Radio Module:Adjustable Full Band: 410-470 MHz
Size (L x W x H):213mm x 119mm x 73mm
Weight:1.2kg (include Internal UHF)
Working Temperature:-40°C to +70°C
Storage Temperature:-45°C to +80°C
Interface:2 Ports (Power & Data & Configuration)
Waterproof and Dustproof:IP67

• EMS1 Motor Steering Wheel

The EMS1 is an electric motor steering wheel. It is designed for easy-to-install operation.
With high-torque, direct-drive electric motor, EMS1 can provide an accuracy up to 2.5cm
RTK.

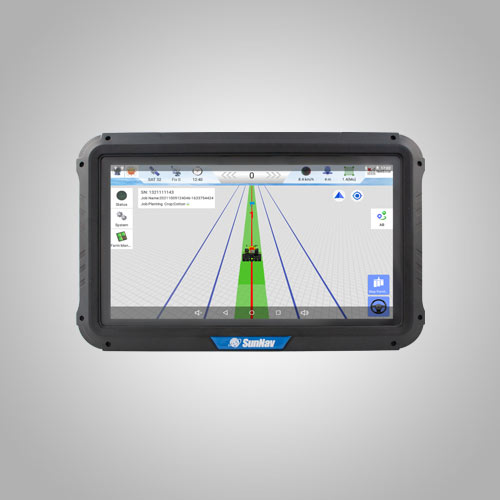

• T100 Tablet with Integrated GNSS Receiver & Radio

The SunNav T100 display is a portable,robust Android tablet. T100 is equipped with a built-in high-precision GNSS board which offers centimeter level accuracy.

T100 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.

 Operation system: Android 6.0
 CPU: Quad-core Cortex-A7 ,1.5GHz
 Storage: 2GB+16GB
 LCD: 1024*600 800nits 10 inch
 TP: 10inch,10 fingerprint multi touch, capacitive, explosion-proof and anti-dazzle
 GNSS: GPS+BDS/GPS+GLONASS
 WiFi+BT: 2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE
 WWLAN: 4G full networks,supporting Unicom, Telecom and Mobile
 Speaker: 4ohm, 2W speaker
 Battery: 2600mAh, NTC protection

• ANGLE SENSOR

 Angle sensor is optional, it can provide higher accuracy and stability.


• GNSS ANTENNA



Double GNSS antenna can give high precision and heading.

Frequency Range: GPS L1/L2, GLONASS L1/L2, Beidou B1/B2/B3



• Other Parts



• 1.5m RS232 Data Cable

• 5m power & data Cable

• 5m Angle Sensor Cable

• Radio Antenna

• 5m TNC-TNC Antenna Cables *2 Mounting Assembly
